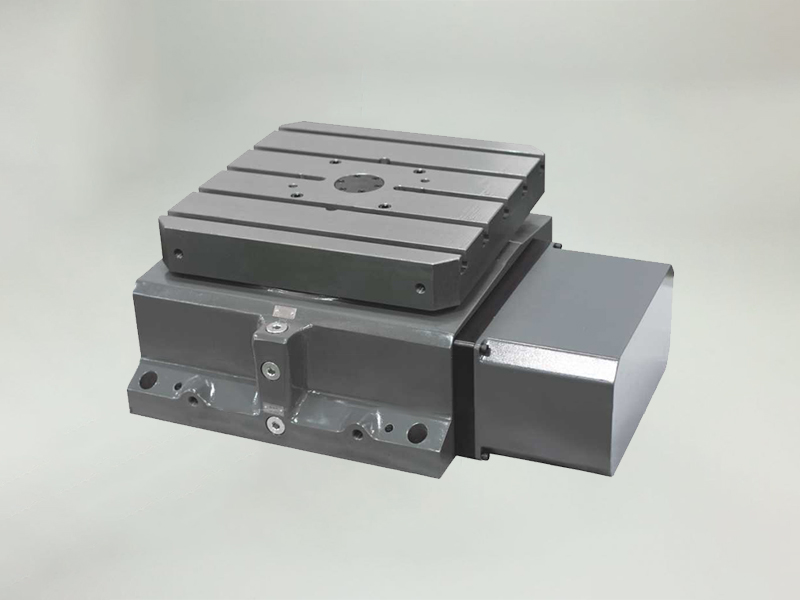

Rotary table accessories-chuck,brake system, L block, bridge plate ,encoder, rotary joint

Various rotary table accessories can be choosen from SilverCNC to meet different processing requirements.

■ Manual chuck: to process some round bar parts.

■ oil booster: provide brake oil for the rotary table, which comes in two forms: air to oil booster and hydraulic station booster.

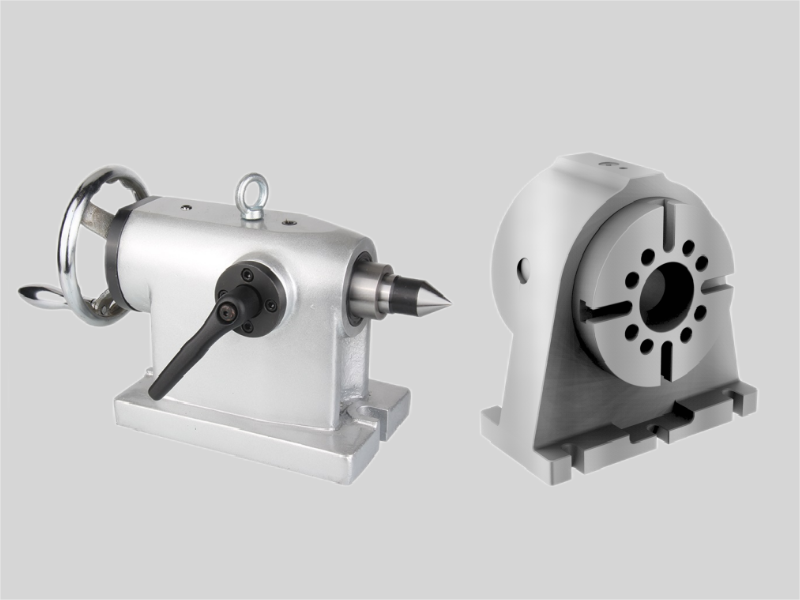

■ L block, bridge plate: used with the tailstock to increase rigidity.

■ Encoder: increase the positioning accuracy and repeatability.

■ Rotary joint: to supply pneumatic or hydraulic pressure from outside to a fixture on a CNC rotary table

Manual chuck

■ When machining round bar type products, it is necessary to clamp the parts with a chuck.

■ Three kinds of chuck options available : manual chuck, pneumatic chuck and hydraulic chuck.

■ For the chuck model of the rotary table, please check the table below.

Models	Grip Range of Inner Diameter (Straight)/mm	Grip Range of Outer Diameter (Reverse)/mm	Manual chuck thickness/mm	Through hole of chuck/mm	Weight/Kg	Max. speed r.p.m/min	Compatible rotary table specs
SK-04	Ø3-Ø100	Ø35-Ø93	58	Ø24	3.45	2500	C120
SK-05	Ø3-Ø123	Ø43-Ø120	60	Ø32	5	2500	C120
SK-06	Ø8-Ø160	Ø55-Ø150	66	Ø45	8.6	2000	C170
SK-07	Ø8-Ø180	Ø62-Ø170	76	Ø58	12.8	2000	C170/C180
SK-08	Ø8-Ø180	Ø62-Ø170	76	Ø58	14.1	2000	C200/C250
SK-09	Ø11-Ø220	Ø70-Ø210	84	Ø70	20.4	2000	C250/C255
SK-10	Ø12-Ø260	Ø80-Ø250	86	Ø89	26.7	1800	C315/C400
SK-12	Ø15-Ø300	Ø90-Ø290	96	Ø105	39.3	1800	C315/C400

Braking system

Air to oil booster cylinder: AOB-6 (optional)

1. Used for hydraulic brake rotary table alone or with tailstock

2. Fast,energy saving and low space demanding

3. Standard 2.5m oil pipe

4. For 5axis rotary table, you can use 2unit AOB-6.

Hydraulic power unit: HSU-1/2(optional)

1. Used hydraulic brake rotary table and tailstock with hydraulic fixture

2. Hydraulic station is stable,and low temperature rise

3. Standard 5m oil pipe

4. If there are complex fixtures, different numbers of hydraulic circuits can be selected.

L block and bridge plate

Suggestion size on the section of the L block and plate

■When the workpiece is designed for multi-station processing, tailstock, L block and bridge plate needed.

■Different rotary , different L block, one piece, split L-block available for selection.

■Allowable load is defined as the maximum workpiece weight that rotary table canstand, which should be calculated as standard cylinder shape.

Models	Unit	A	B	C	D	E	F	G
SC-C170	mm	500	170	30	25	50	35	φ170
SC-C180	mm	600	180	30	25	50	35	φ180
SC-C200	mm	650	200	30	35	60	35	φ200
SC-C250	mm	650	250	30	35	60	35	φ250
SC-C255	mm	700	255	35	35	60	35	φ255
SC-C320	mm	800	320	40	40	70	40	φ320
SC-C400	mm	900	400	40	49	70	40	φ400

Noted：

1.H/I/J is determined by the size of tailstock and workspace limit.

2.The suggestion above is for standard connet plate application, more accurate size please take into consideration of your own specific requirements.
