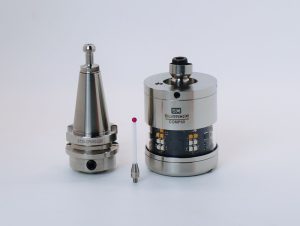

Wired Touch Probe
Previous
Next
Hard-Wired modular touch probing system used in lathe and high gloss machine
Most economic and effective solution for fast measurements of workpiece dimensions and determination of workpiece position in small machining centers
Brand: SILVERCNC
Model: SLP25
Logo printing ： Silvercnc/WDS/None/Customized
Certification： ISO9001
Signal transmission: Wired
Repeatability: 1um (2σ)
Trigger life: >10million
Warranty: 1 year
Packaging Details: carton
Shipping: DHL/TNT/UPS, 3-7 days
Highlights
Parameters
Application
Video
Highlights
Product Description
The probe is a combined wired 3d contact workpiece detection probe designed and developed by our company.
The probe uses cables to transmit electrical signals. adopts modular design, the length of the product can be arbitrarily extended. and it adopts the indicator light design, the working state of the product can be seen .the trigger sensor has excellent stability and repeatable positioning accuracy through its rigid carbide structure and independent reset technology of swing developed independently by our company.
it’s mainly used in lathe machine, highspeed cave machine and other machine tools, realized the improvement of machining accuracy. needs to install the mounting bracket when application .
Parameters
| Model | SLP25 | |
| Unidirectional repeatability Use standard 50mm probe at 600mm/min speed | 1um (2σ) | |
| Sense directions | ±X,±Y,+Z | |
| Stylus trigger force Use standard 50mm probe | XY plane 0.4 – 0.8N | Z direction 4.0N |
| Trigger protection trip | XY plane +/-15° | Z direction 6.35mm |
| Signal transmission method | Hard wired | |
| Trigger life | >10 Million | |
| Transmission on/off style | smart switch | |
| Weight without shank (including batteries) | 80g | |
| Hard wire | 5m, oil resistance, 4 core | |
| Sealing | IP68 | |
| Operating temperature | 0-60℃ | |
wired touch probe dimession:

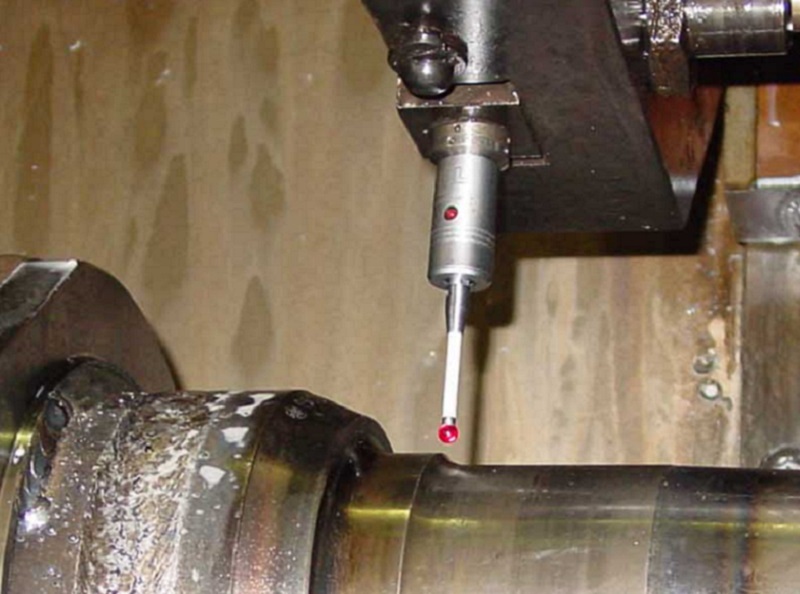

Application
