Collet and chuck
Previous
Next
modular collet and chuck fixture designed for clamping round bar workpiece quickly and effectively
Modular collet and chuck integrate 52 and 96 distance standard studs to improve the installation and exchange efficiency of workpiece.
Integrating with the SilverCNC rotary table is the most common solution
1. ER32,ER40,ER50 cellet are available
2. 80mm,125mm manual chuck are available
3. Interchanged with the SilverCNC 52 and 96 zero point base plates
4. Each modular fixture include 4 pcs studs for free
modular collet and chuck fixture specification
SC52-ER32 specs
Dimension: 75*75*83mm
Clamping range: 3-25mm
Material: stainless steel
Weight/Kg: 1.4KG
SC52-ER50 specs
Dimension: 75*75*92mm
Clamping range: 6-40mm
Material: stainless steel
Weight/Kg: 3KG
SC96-ER32 specs
Dimension: 125*125*104mm
Clamping range: 3-25mm
Material: stainless steel
Weight/Kg: 2.6KG
SC96-ER40 specs
Dimension: 125*125*111mm
Clamping range: 3-32mm
Material: stainless steel
Weight/Kg: 3KG
SC52-D80 specs
Dimensions: φ95*100mm
Material:Hardened steel+surface anti rust
Weight: 2.5KG

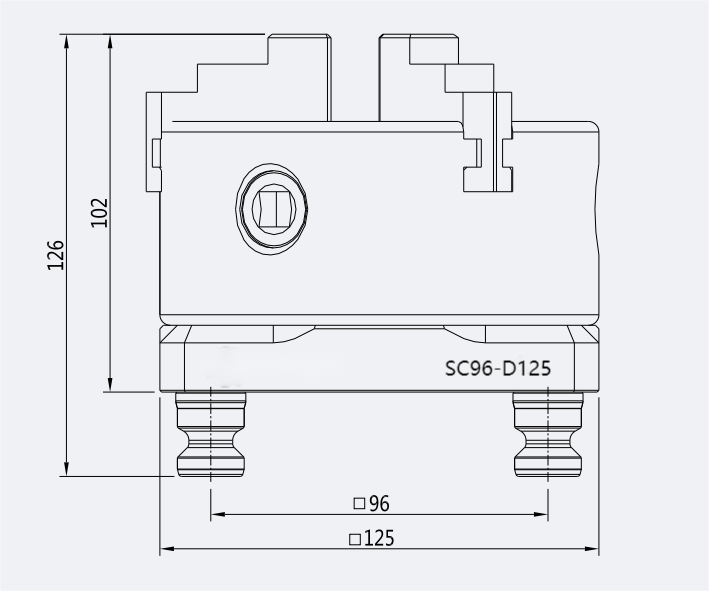

SC96-d125 specs
Dimensions: 125*125*130mm
Material:Hardened steel+surface anti rust
Weight: 8KG
