Advanced Machine tool probe software to improve productivity
SilverCNC inspection software can measuring pdirectly on machine tools, main functions including probe calibration, measurement path planning, GD&T evaluation, blade shape compensation, automated tool compensation and so on
With the software can achieving product inspection, product qualification evaluation, and tool compensation for secondary processing after size deviation, strengthening product quality control,improving detection efficiency
Support machine: CNC, lath, grinder machine, milling and turning machine
Support controller: Heidenhain, Siemens, Fanuc, HNC, GNC, GSK.
Support Probe brand: SilverCNC, Renishaw, Blum, Marposs, Hexagon.
What is the pain point machine tool probe software aims to solve?
Large molds are difficult to detect
- For large and complex parts and large mold products, they are bulky and heavy, it’s difficult and offline measurement for manual inspection , and loading/unloading also difficult
- When the product is deformed after disassembly and reassembly, rework may result in machining deviations
- Traditional detection require inputting the coordinates of the measurement target point each time and recording the measurement results manually, which resulting in a high error rate
Automatic compensation is difficult to achieve
- If the workpiece contains irregular features such as curved surfaces, traditional detection methods are difficult to ensure the measurement accuracy of the workpiece’s curved surface.
- To some automation projects, it usually require automatic measurement of workpiece feature dimensions, which can automatically compensate for tool radius and length before reprocessing to ensure dimensions meet tolerance requirements
Adaptive machining
- Thin walled components such as blade discs and blades are prone to deformation
- Some 3D printed parts, welded workpieces, and other materials often have inconsistent benchmarks
- Toolpath adjustment, allowance optimization，and adaptive machining requirements
CNC machine tool probe software function intruduce

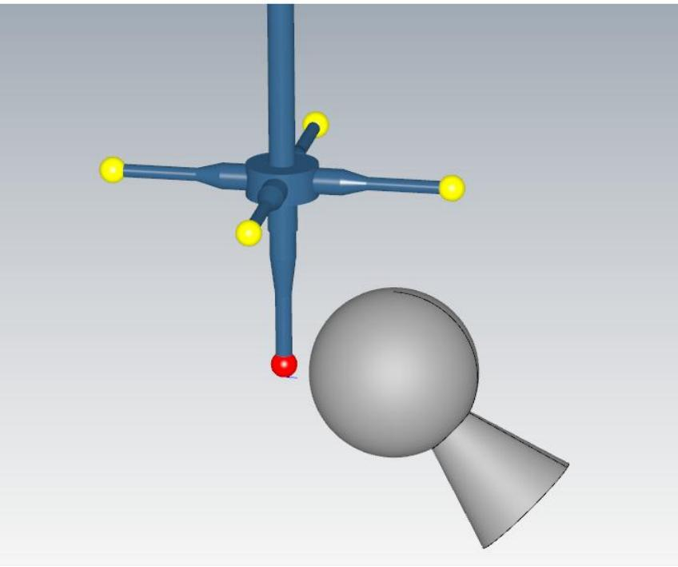

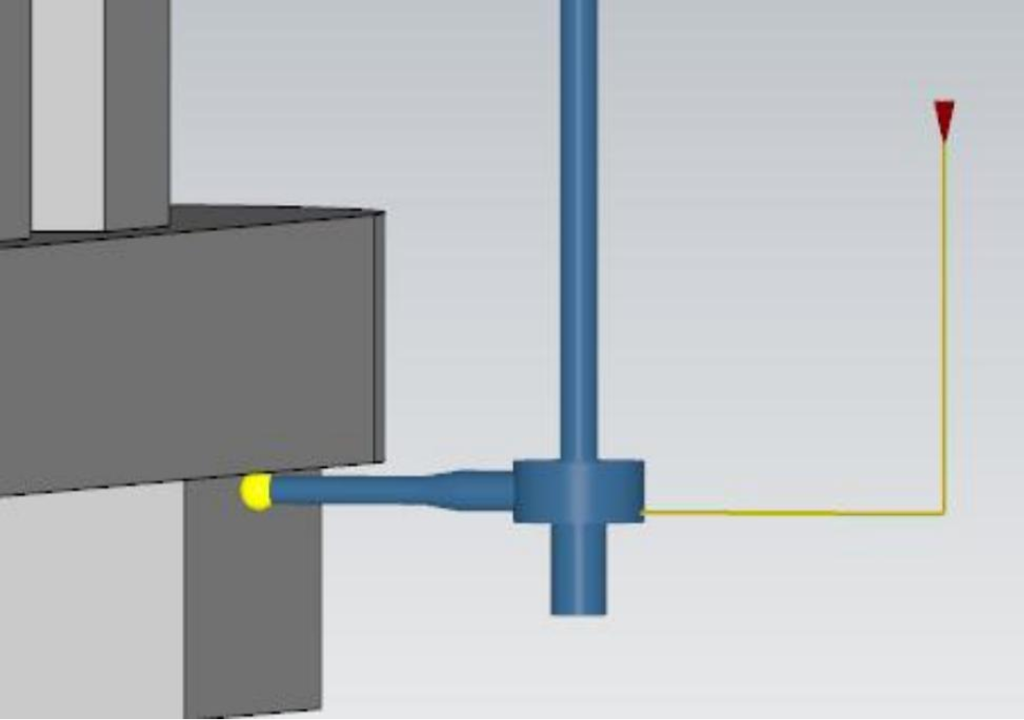

- Ball stylus as well as L-shaped, star-shaped, flat-bottomed cylindrical and other shaped are supported

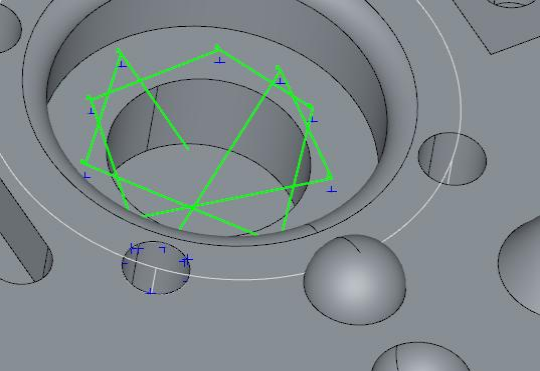

- Multiple security policy parameters ensure collision-free measurement paths
- Bi-directional synchronization of the tool list with the machine
- Ball stylus as well as L-shaped, star-shaped, flat-bottomed cylindrical and other shaped are supported
- Multiple security policy parameters ensure collision-free measurement paths
- Bi-directional synchronization of the tool list with the machine
- Ball stylus as well as L-shaped, star-shaped, flat-bottomed cylindrical and other shaped are supported
- Multiple security policy parameters ensure collision-free measurement paths
- Bi-directional synchronization of the tool list with the machine
- Ball stylus as well as L-shaped, star-shaped, flat-bottomed cylindrical and other shaped are supported
- Multiple security policy parameters ensure collision-free measurement paths
- Bi-directional synchronization of the tool list with the machine

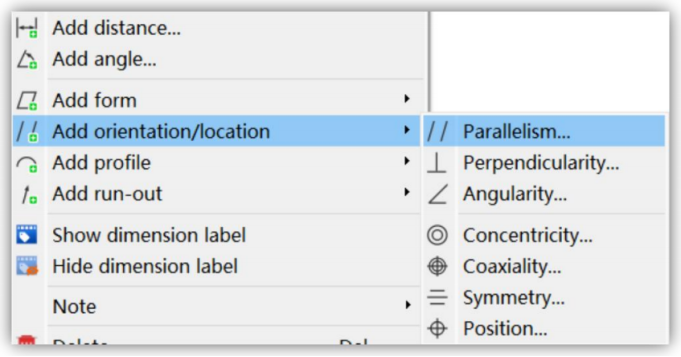

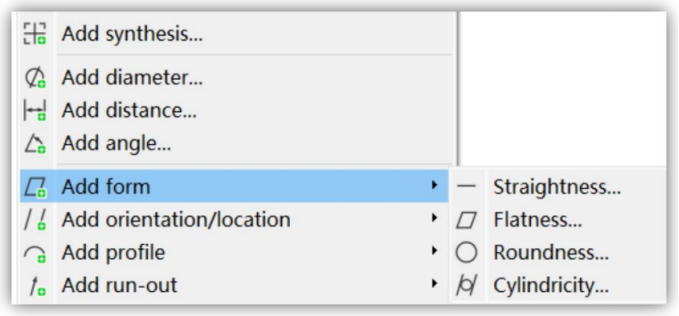

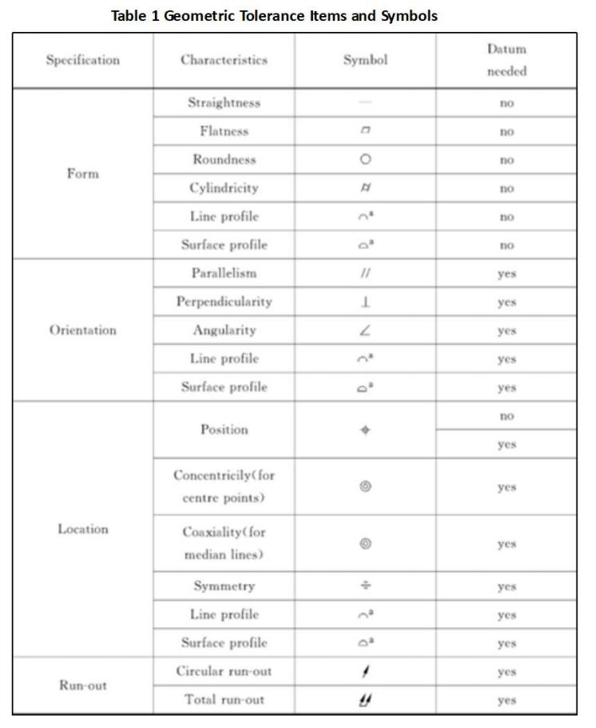

- All GD&T programs are supported.
- GD&T functions implement GB/T 1182/ISO 1101 standards in general.
- Some functions also support ASME Y14.5.

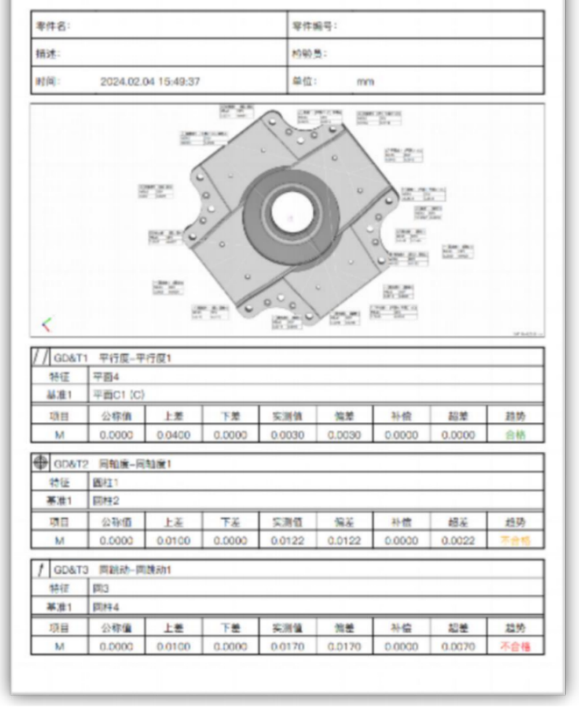

- One-click generation of measurement reports for all geometric tolerances.
Reports in TXT, CSV and PDF formats.
Reports preview. - Blade profile evaluation report for impeller, blisk and closed blisk.

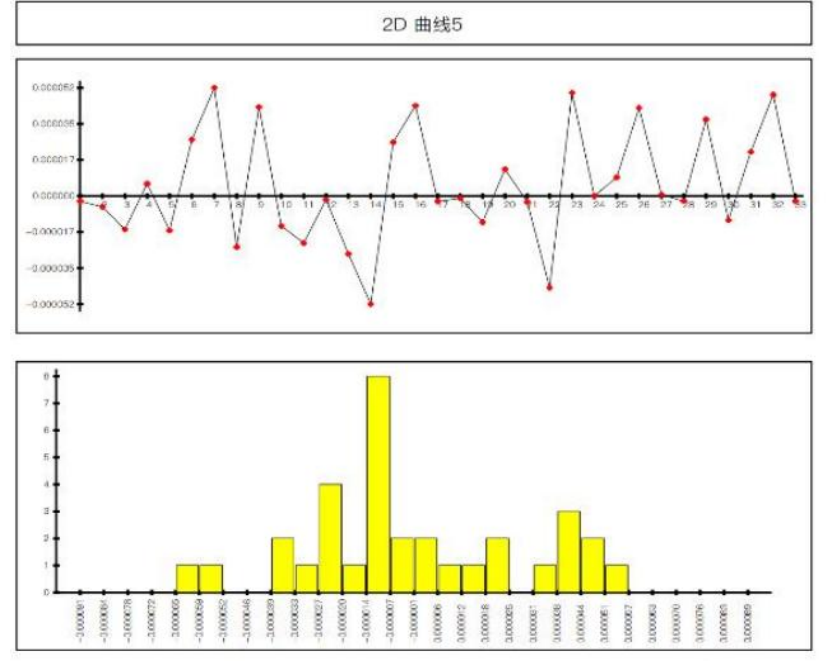

Statistical analysis of measurement data, Line and bar charts ofdeviation distribution in PDF report output.
Dimension labels, deviation cloud maps can be output in report

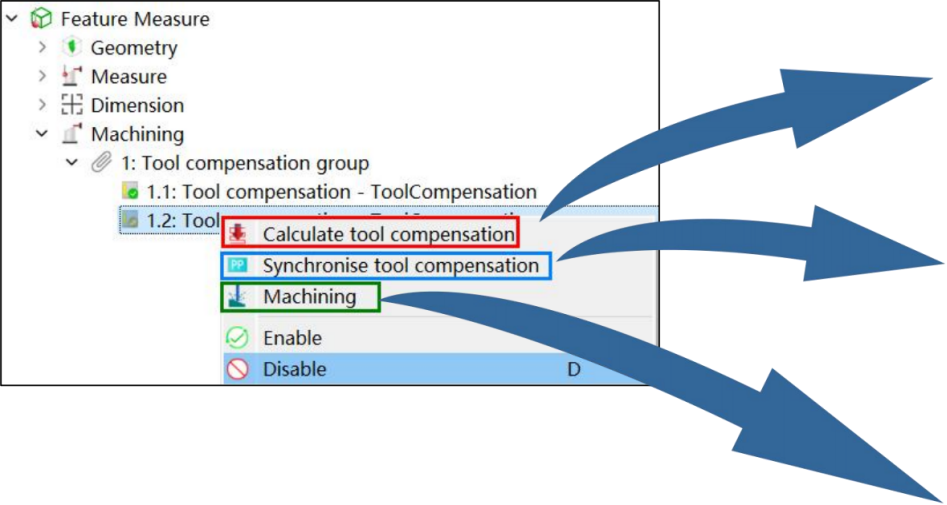

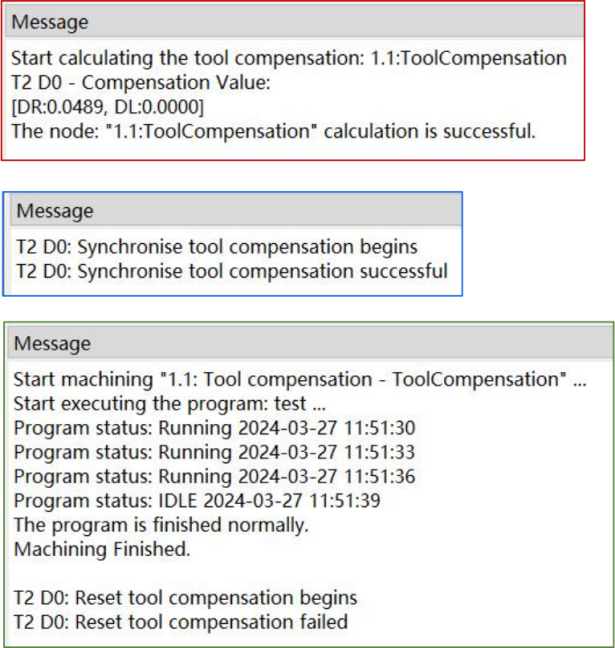

- On-machine measurement data analysis and the corresponding tool compensation value calculation to correct the machining tool path.
- Can be In tandem with measurement operations for one-click automation and integration of measurement and machining.
Advanced functions of the machine tool probe software

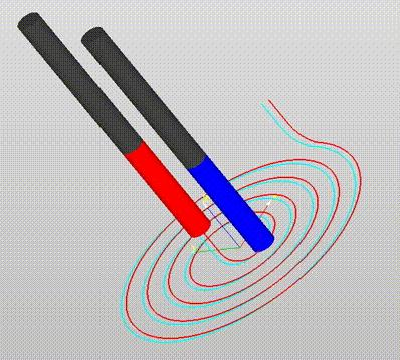

Algorithms: Toolpath Adjustment
Adaption Mode: BestFit, Adaptive

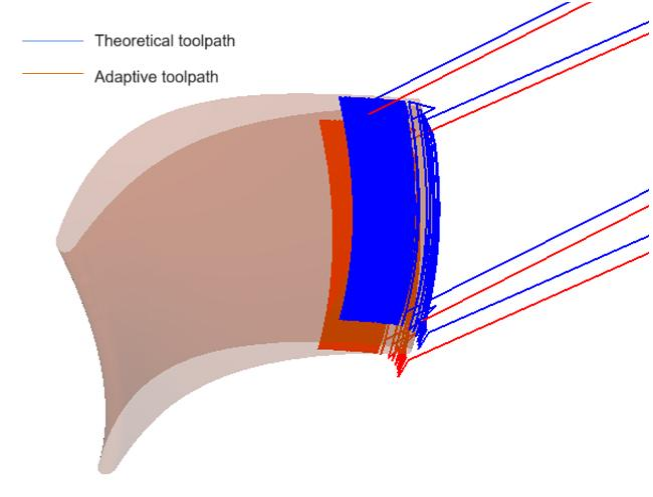

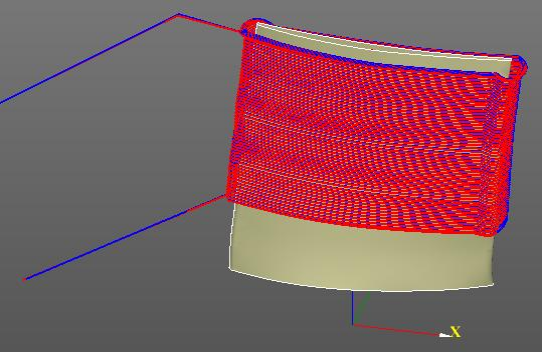

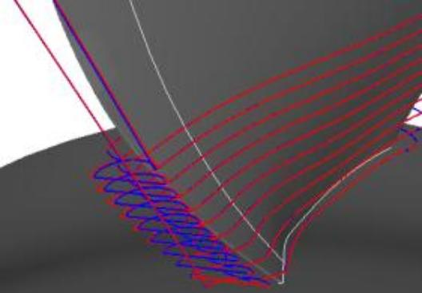

Using model reconstruction – toolpath mapping and other technical means to realize adaptive adjustment of toolpath shape

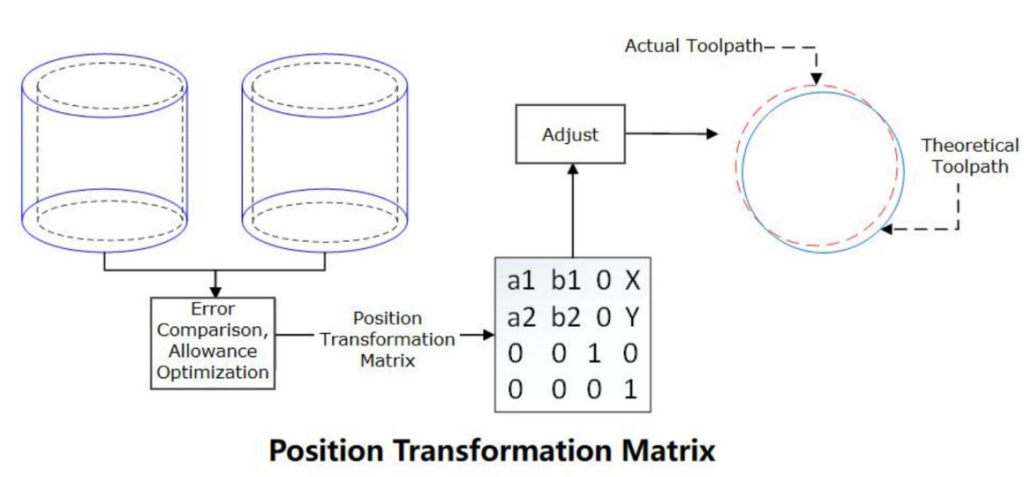

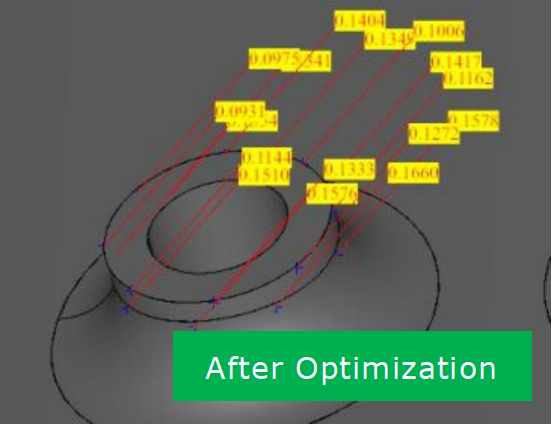

Adaptive Modules: allowance Optimization

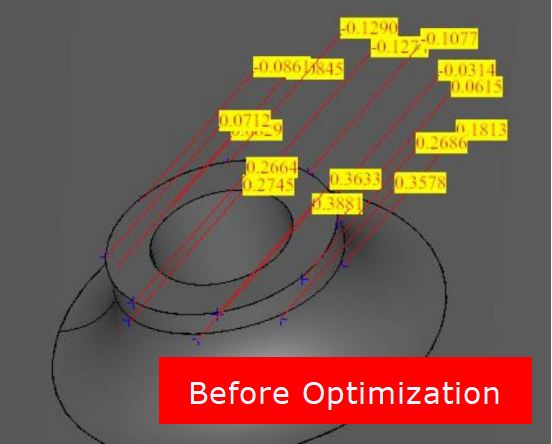

Automatically calculate the best position of the part based on measured data of the blank or machined feature and compensate it to the machining program
Allowance optimization under position degree constraints
Adaptive Modules: allowance Optimization

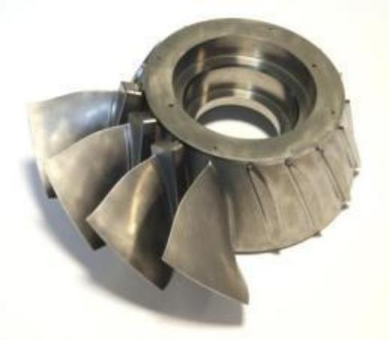

The probe software provide a complete set of adaptive solutions for blade repair scenarios such as linear friction welding of blis k s and fusion cladding of broken blis ks for remanufacturing
Adaptive Modules: Blade Compensation Machining

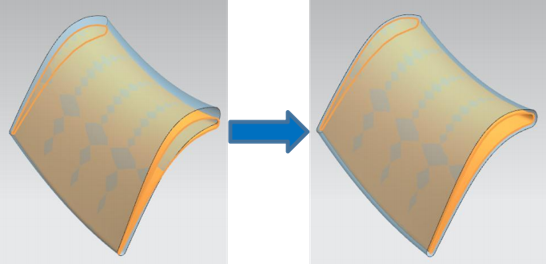

Datum match

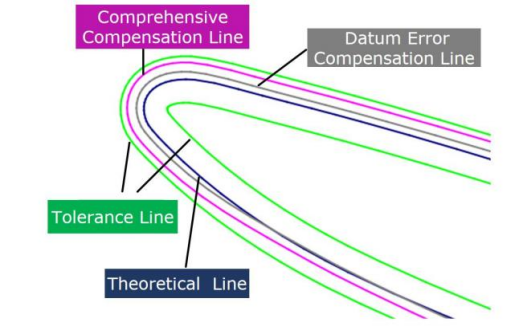

Blade deformation control

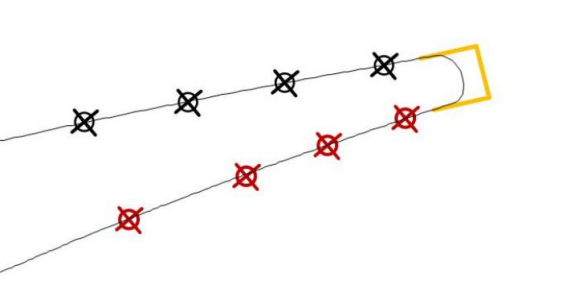

Contour reconstruction

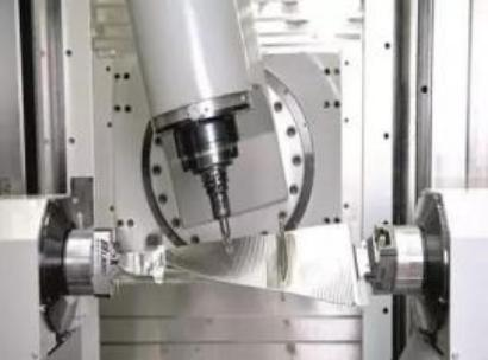

Die Forging Blade Machining

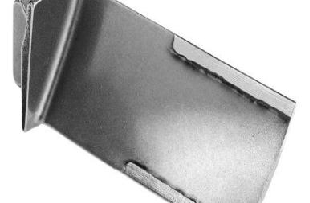

Precision forged/precision cast blade inlet and exhaust edge machining

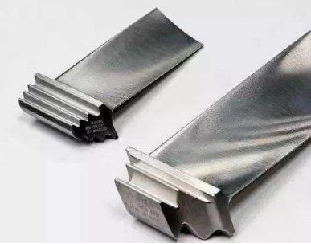

Blade tenon chamfering

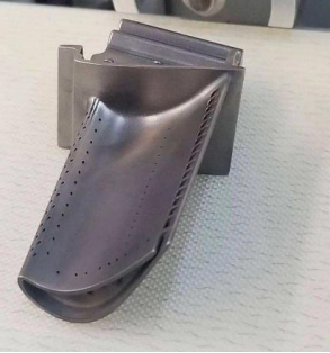

Turbo Blade Tip Repair
the machine tool probe software application video

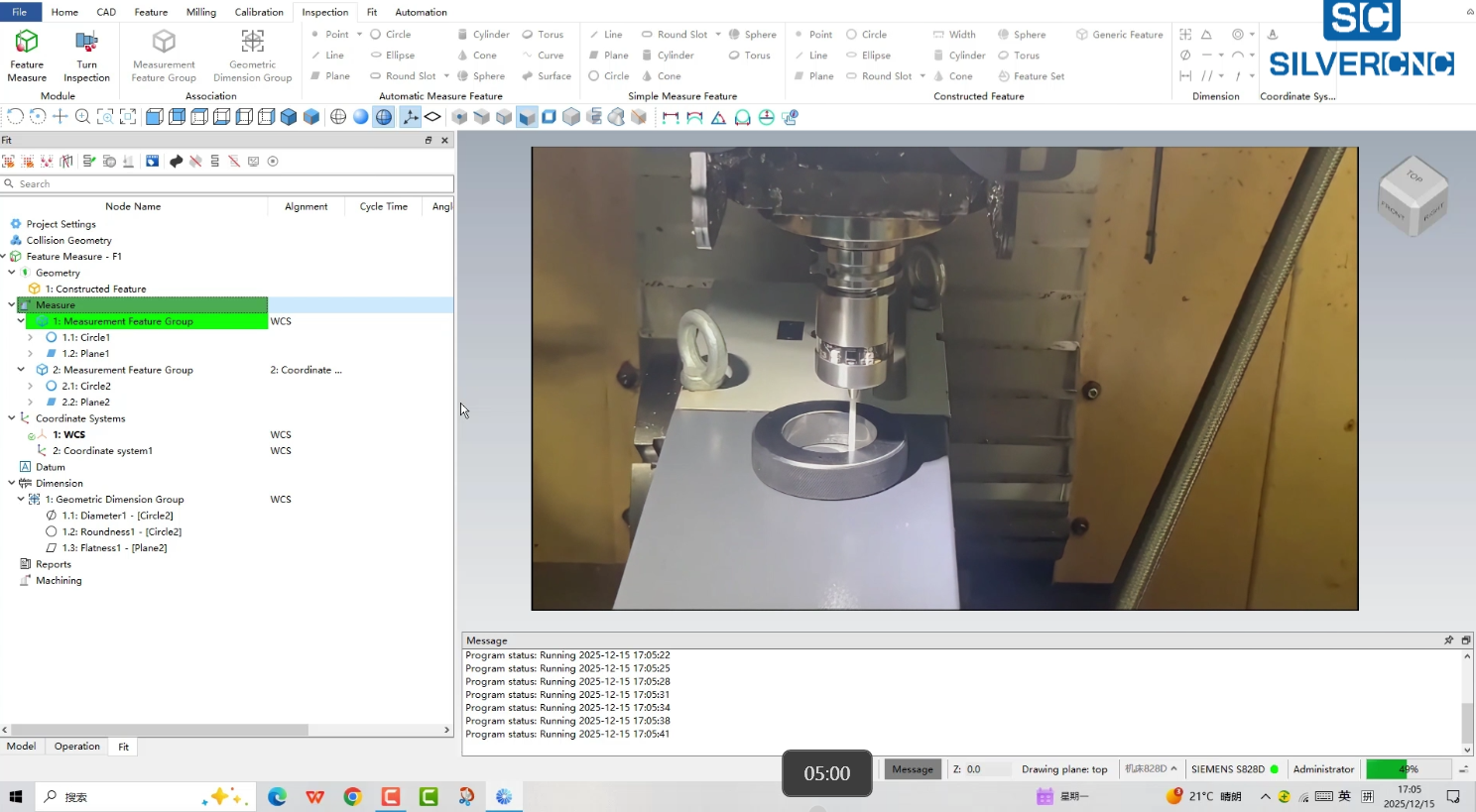

The video provides a simple demonstration of how to use touch probe software, including software communication connection to machine tool controller, probe calibration, product model measurement, and generating size reports
