Mechanical zero point

Best quality mechanical zero point in China

Precise, reliable and affordable

■ Compact Design,4-point clamping by only one actuation screw

■ Strong clamping with 14 kN force allows heavy duty machining

■ Multiple workpieces holding,maximizes fixture spaces for clamping multiple workpieces

■ 2 jaws locate and clamp the pull studs with high accuracy, precise and quick fixture change

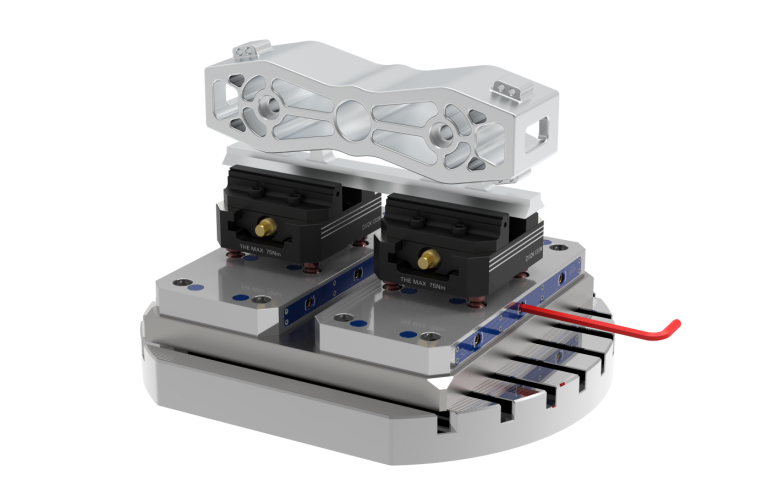

mechanic zero point cover 4

Mechanical zero point feature

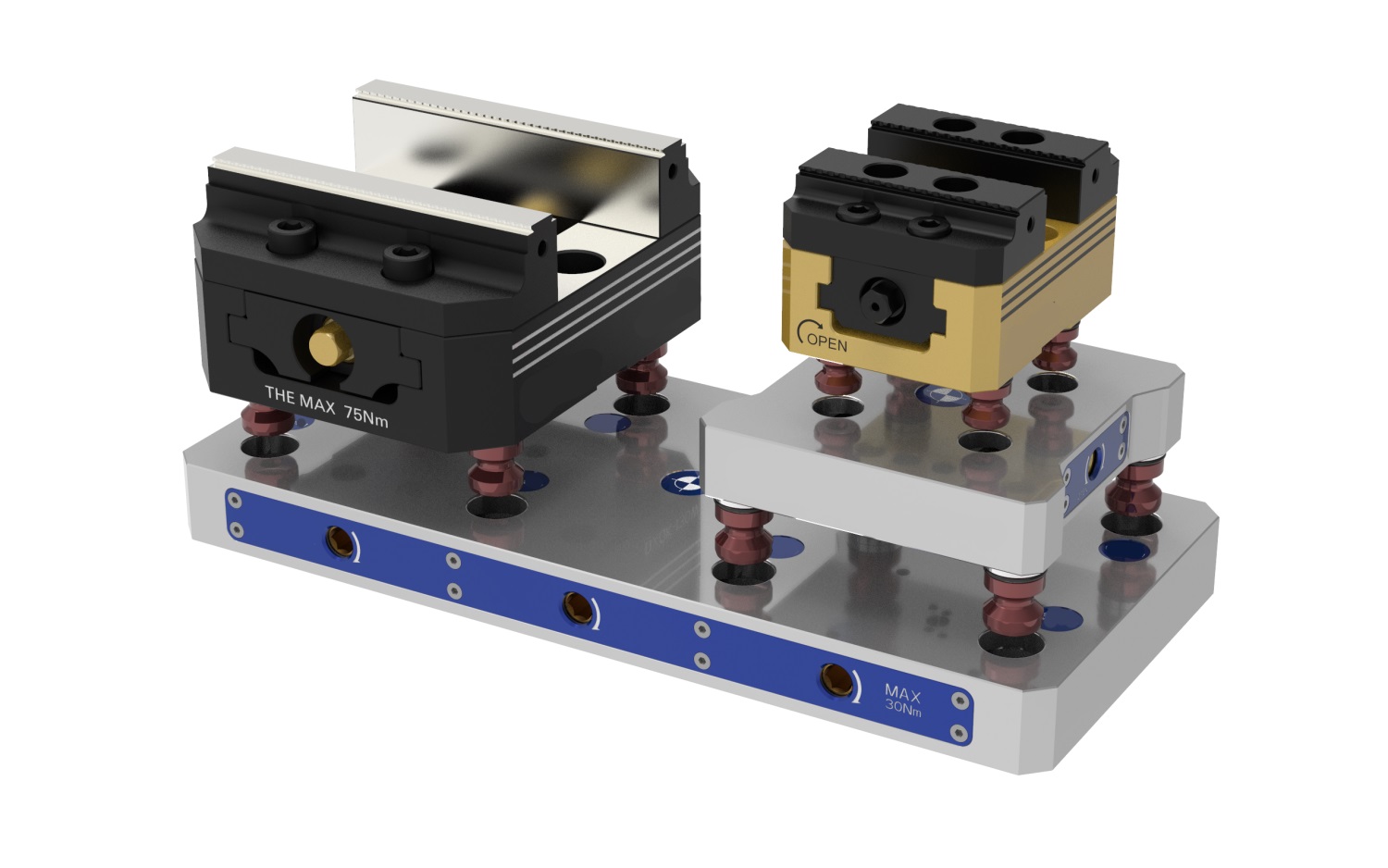

With the mechanical zero point system ,clamping devices like centre clamping vises, self-centering vises, machine vises can be rapidly changed on the base unit.
The zero-point-clamping-system enables an increase in machine run-time and manufacturing quality.
The change of the clamping devices is done only by a central clamping screw.

Due to the flat design and the fixturing holes of the zero-point-system an universal mounting on the machine table or on fixturing devices is possible

■Reliable structural designs, Silvercnc zero point base plate has similar function as 5 axis
■0.005mm repeatability
■Clamping force up to 15000N
■Size and center distance can be customized

Mode list

52 type mechanical quick change plate

mechanical zero point base plate, factory and supplier

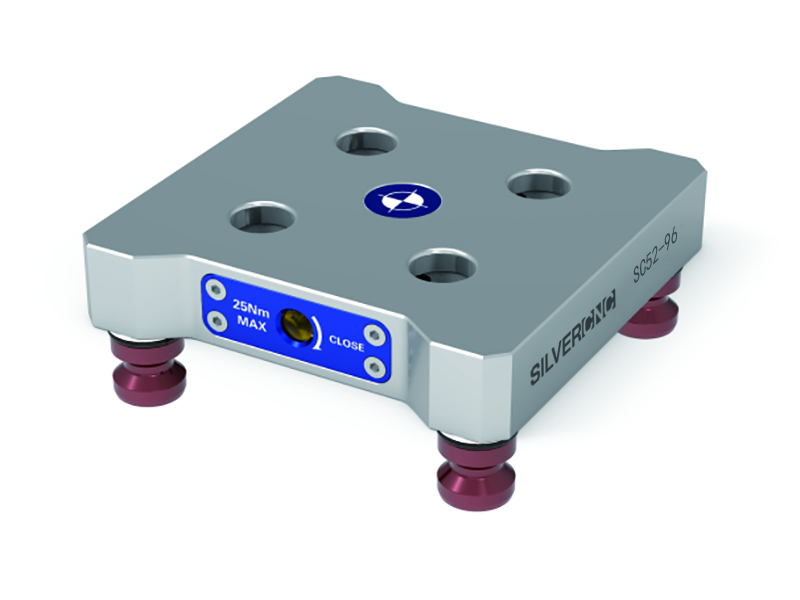

SC52-S96

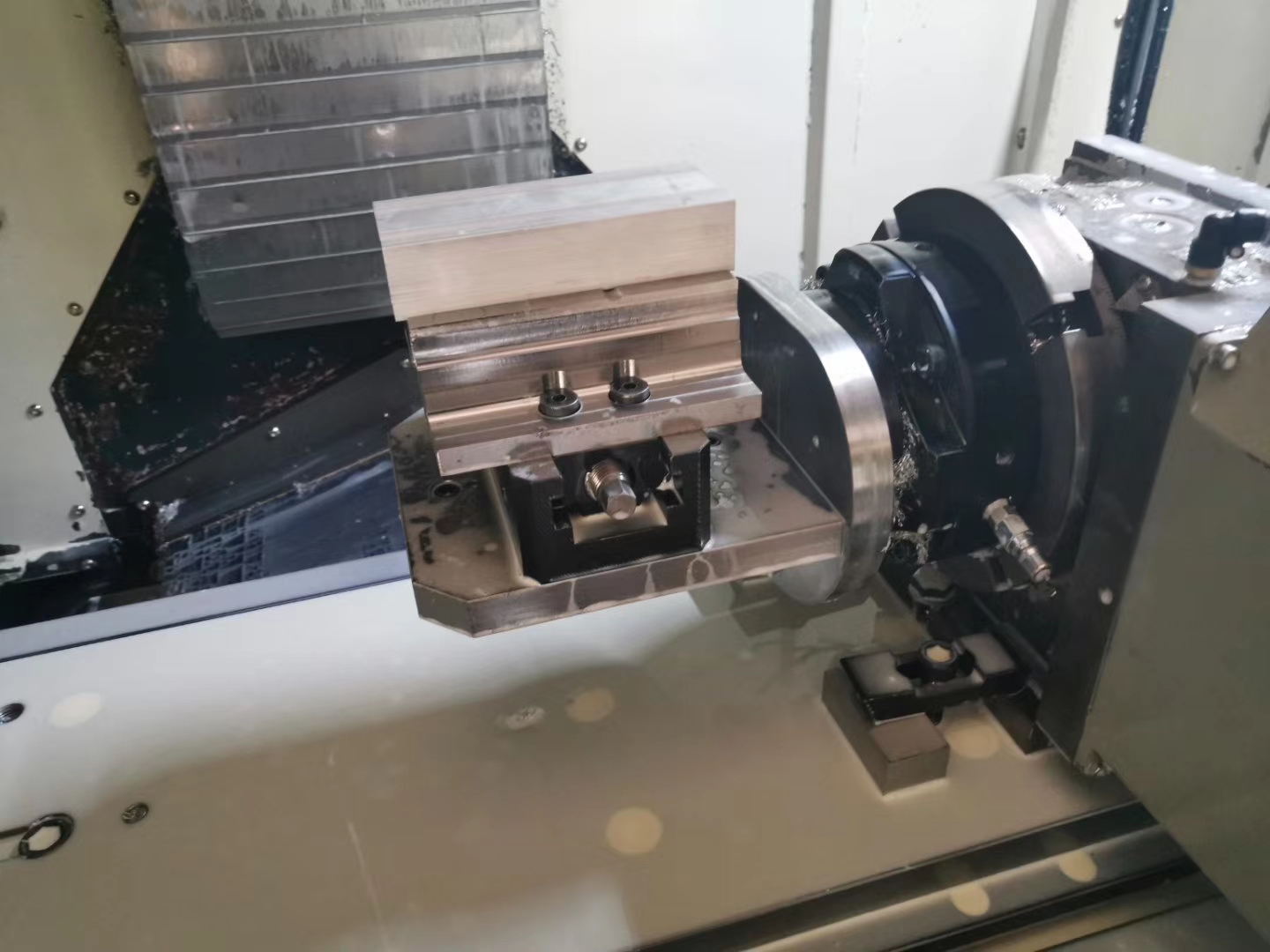

mechanical zero point base plate, on 4th rotary table

SC52-S120

mechanical zero point clamping plate, china wholesale

SC52-S145

mechanical zero point clamping plate

SC52-S150

For dimensions information,click the download catalog

Model

SC52-S96

SC52-S120

SC52-S145

SC52-150

Dimessions/mm

121*121*25

106*106*25

106*106*25

      120*106*25

Repeatability/mm

0.005

0.005

0.005

0.005

Clamping force/KN

18

18

18

18

Material

steel

steel

steel

steel

Weight/Kg

2.4

1.6

1.8

2

96 type mechanical quick change plate

mechanical zero point base plate supplier

SC96-S190

mechanical zero point, 5th axis plate

SC96-S195

mechanical zero point, 96 distance stud

SC96-S205

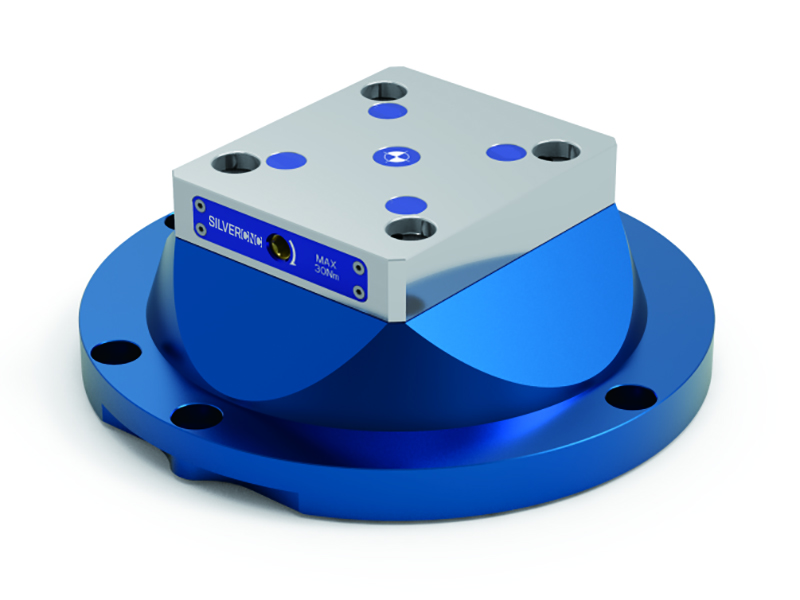

mechanical zero point, 5 th axis rocklock

SC96-S275

For dimensions information,click the download catalog

Model

SC96-S190

SC96-S195

SC96-S205

SC96-S275

Dimessions/mm

150*150*30

150*128*30

150*150*30

φ100

Repeatability/mm

0.005

0.005

0.005

0.005

Clamping force/KN

22

22

22

22

Material

steel

steel

steel

steel

Weight/Kg

4

4.6

4

9.6

Self centering vise

small 5axis self centering vise supplier

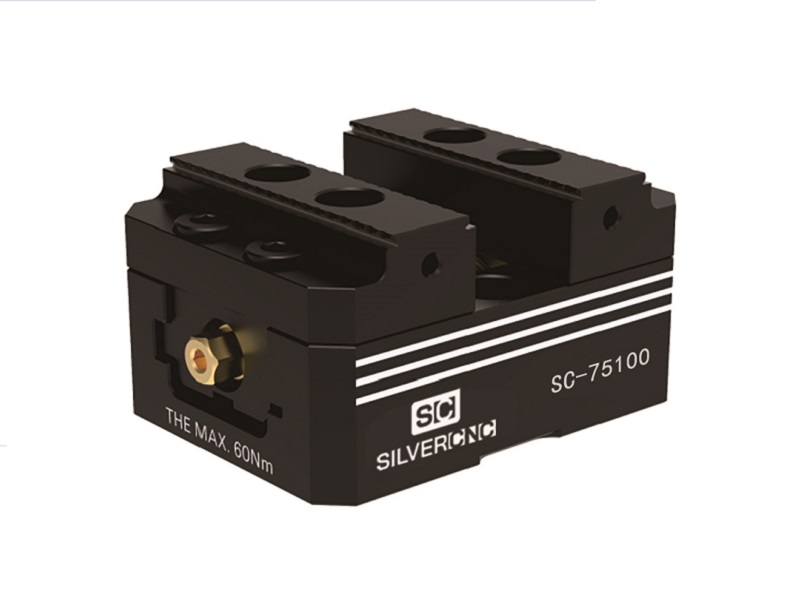

SC-75100

SC 75100T

SC-75100T

small 5axis self centering vise wholesale

SC-75150

5axis self centering vise , China factory

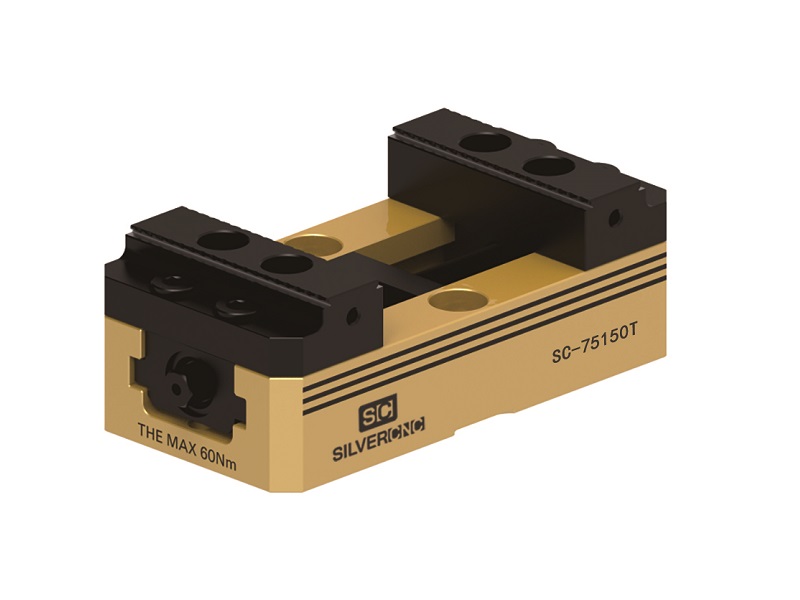

SC-75150T

5axis self centering vise , replace haas self centering vise

SC-125128

cnc 5-axis self centering vise ,replace shuck

SC-130155

cnc 5-axis self centering vise ,replace lang

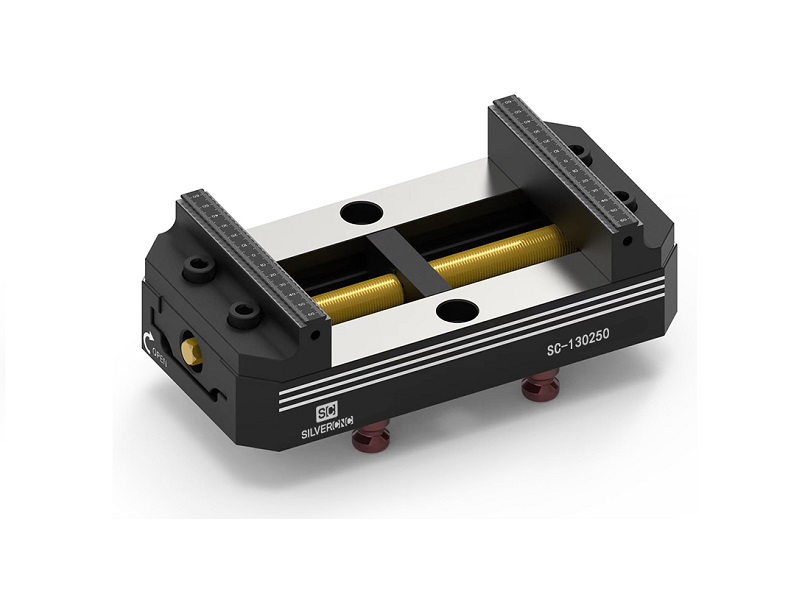

SC-130250

cnc self centering vise

SC-150250

For dimensions information,click the download catalog

Model

SC-75100

SC-75150

SC-125128

SC-130155

SC-130250

SC-150250

Dimessions/mm

75*100*56

75*150*56

125*128*73.5

130*155*73.5

130*250*73.5

150*250*94

Repeatability/mm

0.01

0.02

0.02

0.02

0.02

0.02

Clamping range/mm

0-77

0-121

0-128

0-150

0-240

0-240

width/mm

75

75

125

130

130

150

maximum torque/N.m

60

60

75

75

75

100

Weight

2.5

3

6

7

9

16

Mechanic Zero point clamping photos

Mechanic Zero point clamping video
